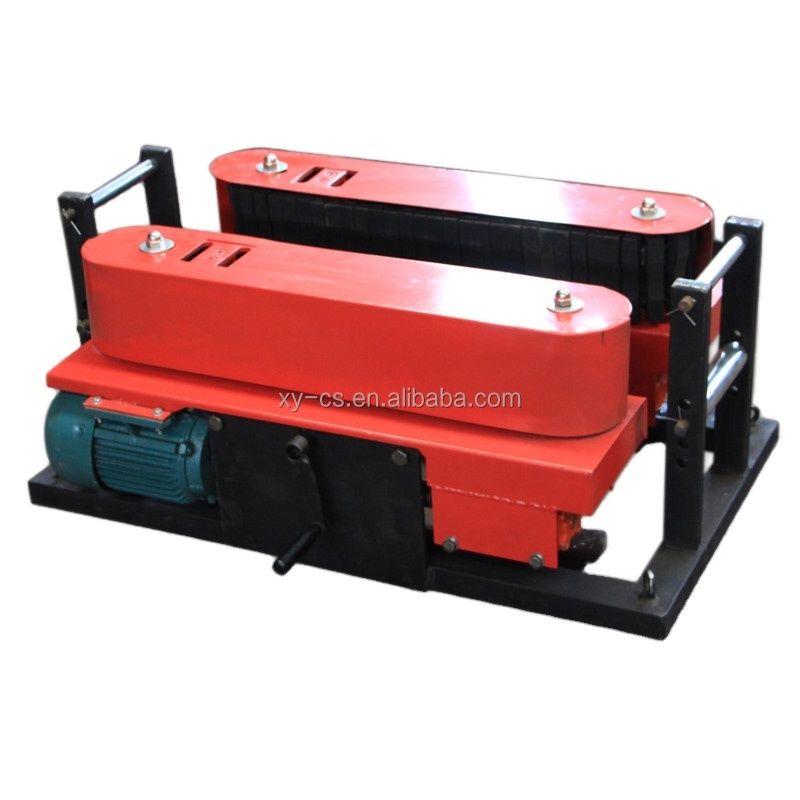

Electric Cable Winch Puller for Underground Cable Laying 700-900KGS

Brand Name:	OEM
Model Number:	DSJ
MOQ:	1
価格:	$1,200-1,500

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

証明:

ISO

Line Pulling:

700/900 KGS

Cable Diameter:

30-180mm/30-200mm

Rubber Thickness:

25mm

Pulling Speed:

6/8 m/min

Capacity:

1kN

Electric Motor:

1.1KW *2 / 1.5KW * 2

Oversize Dimension:

950*500*400 / 1020*590*400 mm

Weight:

150 / 180-200 KGS

Transmission Ratio:

I=45 / I=60

Power Source:

Electric

Model Type:

DSJ-150 / DSJ-180

Pulling Capacity:

700/900 KGS

Motor Power:

1.1KW / 1.5KW

Machine Type:

Conveyor

Usage:

Pulling

ハイライト:

electric cable winch puller for underground

700-900kgs cable winch puller

underground cable laying winch puller

Product Description

DSJ Cable Laying Equipment With Electric Engine for Underground Cable Pulling

Product Overview

Product Specifications

Warranty

3 years

Customized support

OEM, ODM

Power Source

Electric

Application

Pulling, power construction

Capacity

1kN

Technical Data

Model Type	DSJ-150	DSJ-180
Line pulling(KGS)	700	900
Pulling Speed(m/min)	8	6
Electric motor	1.1KW *2	1.5KW * 2
Oversize dimension	950500400	1020590400
Weight(KGS)	150	180-200
Cable diameter	Φ30 - 180 mm	Φ30 - 200 mm
Transimission	I=45	I=60
Rubber sheet thickness	25mm	25mm

Applications

Our cable laying and pulling machine is the ideal solution for cable transmission in power, petroleum, chemical, industrial construction, power plant extension, substation and city network transmission applications. It is suitable for cable trays in any form of channel, cable pipe, and can convey various power and control cables.

Key Features
