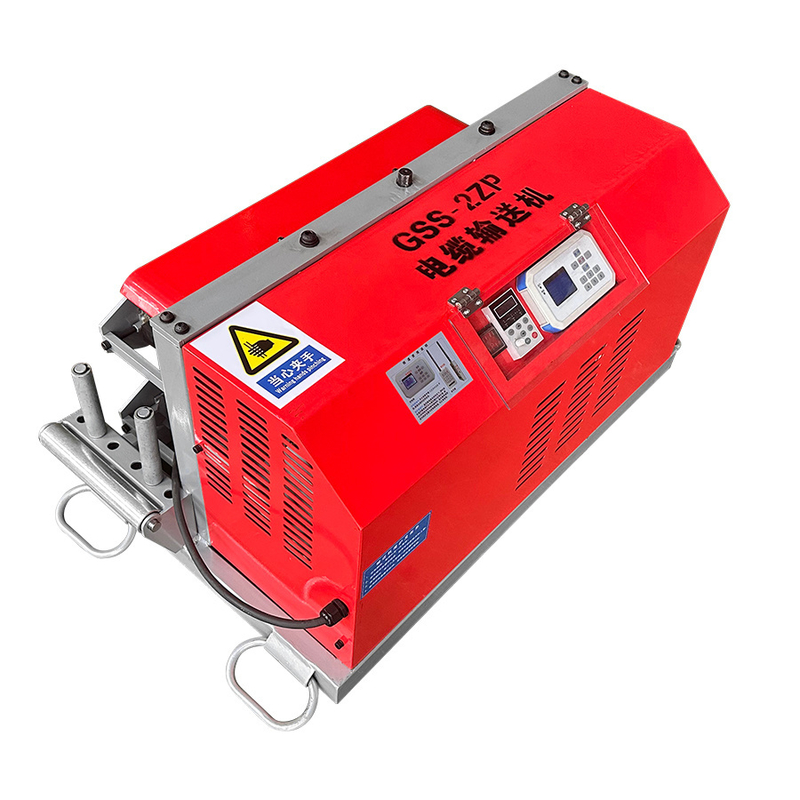

GSS-2ZP Cable Pulling Machine 600 KGS Capacity 10-180mm Diameter

Name: GSS-2ZP Cable Pulling Machine 600 KGS Capacity 10-180mm Diameter
Brand: Changshu Xinya Machinery Manufacturing Co., Ltd.
SKU: GSS-2ZP
Price: 1,500.00 USD
Availability: InStock

ブランド名:	XINYA
モデル番号:	GSS-2ZP
Moq:	1
価格:	USD1000-USD2000
納期:	7〜15日
支払い条件:	L/C、T/T、Western Union

詳細情報

製品説明

詳細情報

起源の場所:

江蘇、中国

ラインプル:

600キログラム

ケーブルの直径:

10-180mm

速度を引く:

0-26 m/分

電気モーター:

3kw

特大の寸法:

980x530x480mm

重さ:

140キログラム

クランプ:

2.7kn以下

パッケージの詳細:

木材ケース

ハイライト:

600 kgs cable pulling machine

cable winch puller 10-180mm diameter

GSS-2ZP cable puller with warranty

製品説明

Intelligent Cable Pulling Machine Cable Conveyor for Underground Electrical Laying Model GSS-2ZP

The GSS-2ZP intelligent cable conveyor represents the latest generation of cable laying equipment, designed for efficient long-distance and large-section cable traction and transportation. This machine assists construction teams in safe and productive cable installation, particularly in challenging environments such as tunnels, pipelines, and bridges.

Product Overview

Advanced double-track transmission system ensures stable traction across various cable specifications
Features wear-resistant rubber conveyor belt/track with non-slip surface for superior cable grip
Modular design allows multiple units to operate in series for ultra-long distance installations

Key Features

Compact yet powerful design with excellent thrust capability
Lightweight construction for easy maneuverability in confined spaces
Operates as standalone unit or synchronized with multiple machines via control box
Rubber-cast conveying wheels prevent cable surface damage
Adjustable center distance accommodates various cable diameters (10-180mm)
Double caterpillar drive system protects cable insulation integrity
High-strength DRC caterpillar construction ensures uniform force distribution
Quiet operation with minimal temperature rise during extended use
Engineered for easy maintenance and serviceability

Technical Specifications

Item	Value
Model	GSS-2ZP
Power	Electric engine 3KW 380V 3-phase
Cable Diameter	10-180mm
Dimension	980×530×480mm
Pulling Speed	0-26m/min
Clamp	≤2.7KN
Pulling Force	6KN
Weight	140kg
